Welding fume dust collector single arm mobile fume extractor
Part 1: Products application
Welding
Laser cutting and engraving
New material pricessing
......
Part 2: Machine description
1.The main parts steel is one time cutting, with reasonable, high integrated , and beautiful body design.
2.The inlet parts have flow guiding device, greatly protect the filter cartridge.
3.Using down flow type design, inlet at the top and outlet at the bottom, easy to dust falling
4.Wide Front door and rotating buckle design make is easy to detect and replace the filter cartridge.
5.Adopt the high efficiency import PTFE layer filter, Good ventilation reach 99.9%.
6.Automatic dedusting function after connected air compressor, greatly decrease human maintenance cost.
7.Four wheels at the bottom parts, two with brake and easy to fix.
8.Import aluminum alloy fan impeller, high air volume, low noise and power consumption.
9.Import motor, Europe standard design, IM international installation.
10.Big dust bucket capacity, enough for working 15-20 days continuously.
11.Full import suction arm, unique suction hood design, high dust collecting efficiency. One more joint on suction arm makes is easy to reach any place easily. The inner frame is strong aluminum with anodized design, high weight and anti-corrosion capacity, longer lifetime.
Part 3: Techical parameter
Part 4: Application cases pictures
Part 5: Why choose Welldone?
1.Patent design, CE, ISO9001, ISO14001, and OHSAS18001 certificate approved.
2.Fine details design, like 2-3mm thickness metal, 80mm noise damping cutton...
3.Advanced patent design filter, 0.02-99.9% efficiency, 8000h lifetime. PTFE coated, Import from Japan. easy pass government inspection
4.Famous machine components.
5.3 years warranty on fan and motor, 1 years warranty on filter
6. Manufacture directly sales, lower price, better services and easy maintance.
.......
Part 6: Company introduction
Quickly contact us if you are interested in our products:
Tel: +86 0731-86398162
Welldone Environmental Protection Equipment (Changsha) Co., Ltd
Website: welldoneexport.en.made-in-china.com
Part 1: Products application
Welding
Laser cutting and engraving
New material pricessing
......
Part 2: Machine description
1.The main parts steel is one time cutting, with reasonable, high integrated , and beautiful body design.
2.The inlet parts have flow guiding device, greatly protect the filter cartridge.
3.Using down flow type design, inlet at the top and outlet at the bottom, easy to dust falling
4.Wide Front door and rotating buckle design make is easy to detect and replace the filter cartridge.
5.Adopt the high efficiency import PTFE layer filter, Good ventilation reach 99.9%.
6.Automatic dedusting function after connected air compressor, greatly decrease human maintenance cost.
7.Four wheels at the bottom parts, two with brake and easy to fix.
8.Import aluminum alloy fan impeller, high air volume, low noise and power consumption.
9.Import motor, Europe standard design, IM international installation.
10.Big dust bucket capacity, enough for working 15-20 days continuously.
11.Full import suction arm, unique suction hood design, high dust collecting efficiency. One more joint on suction arm makes is easy to reach any place easily. The inner frame is strong aluminum with anodized design, high weight and anti-corrosion capacity, longer lifetime.
Part 3: Techical parameter
| Model | WYJ-1.5Z |
| Mode of dedusting | Automatic dedusting |
| Voltage/Phase/frequency | 380V/3PH/50HZ |
| Air volume | 1500m³/h |
| Engine power | 1.5kw |
| Filter efficiency | 99.90% |
| Filter | 1-Φ324*610mm |
| Suction arm | 1-Φ160mm |
| The length can be 2/3/4m | |
| dB | <=75db |
| Compressed air used for dust collector | 0.4-0.5MPa |
| Outside Demension | 865*665*1260mm |
| Location | Indoor |
| Option | Stop or start by yours' equipment |
| Option | Activated carbon filtration |

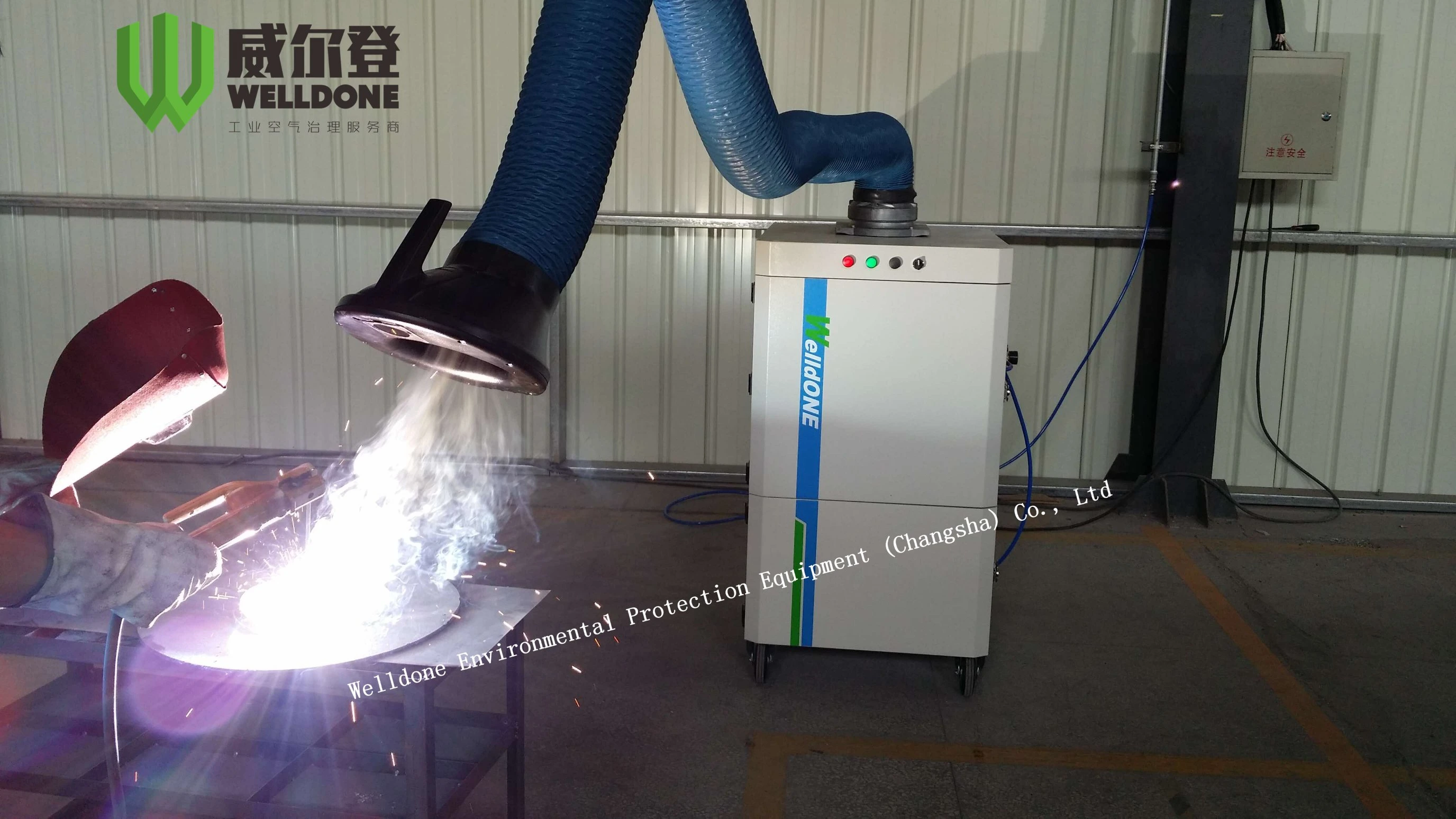

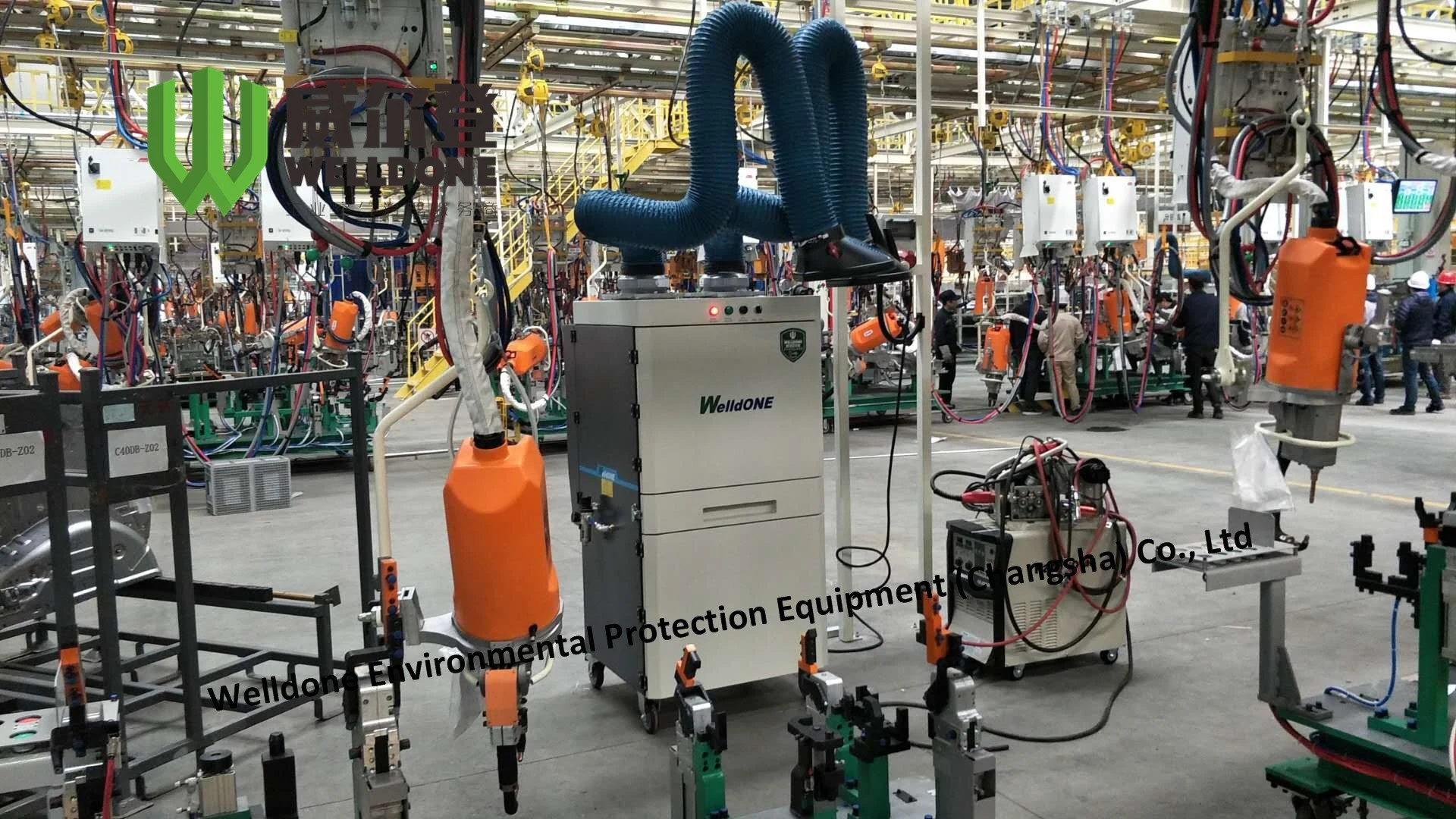

Part 4: Application cases pictures
Part 5: Why choose Welldone?
1.Patent design, CE, ISO9001, ISO14001, and OHSAS18001 certificate approved.
2.Fine details design, like 2-3mm thickness metal, 80mm noise damping cutton...
3.Advanced patent design filter, 0.02-99.9% efficiency, 8000h lifetime. PTFE coated, Import from Japan. easy pass government inspection
4.Famous machine components.
5.3 years warranty on fan and motor, 1 years warranty on filter
6. Manufacture directly sales, lower price, better services and easy maintance.
.......
Part 6: Company introduction
Quickly contact us if you are interested in our products:
Tel: +86 0731-86398162
Welldone Environmental Protection Equipment (Changsha) Co., Ltd
Website: welldoneexport.en.made-in-china.com
